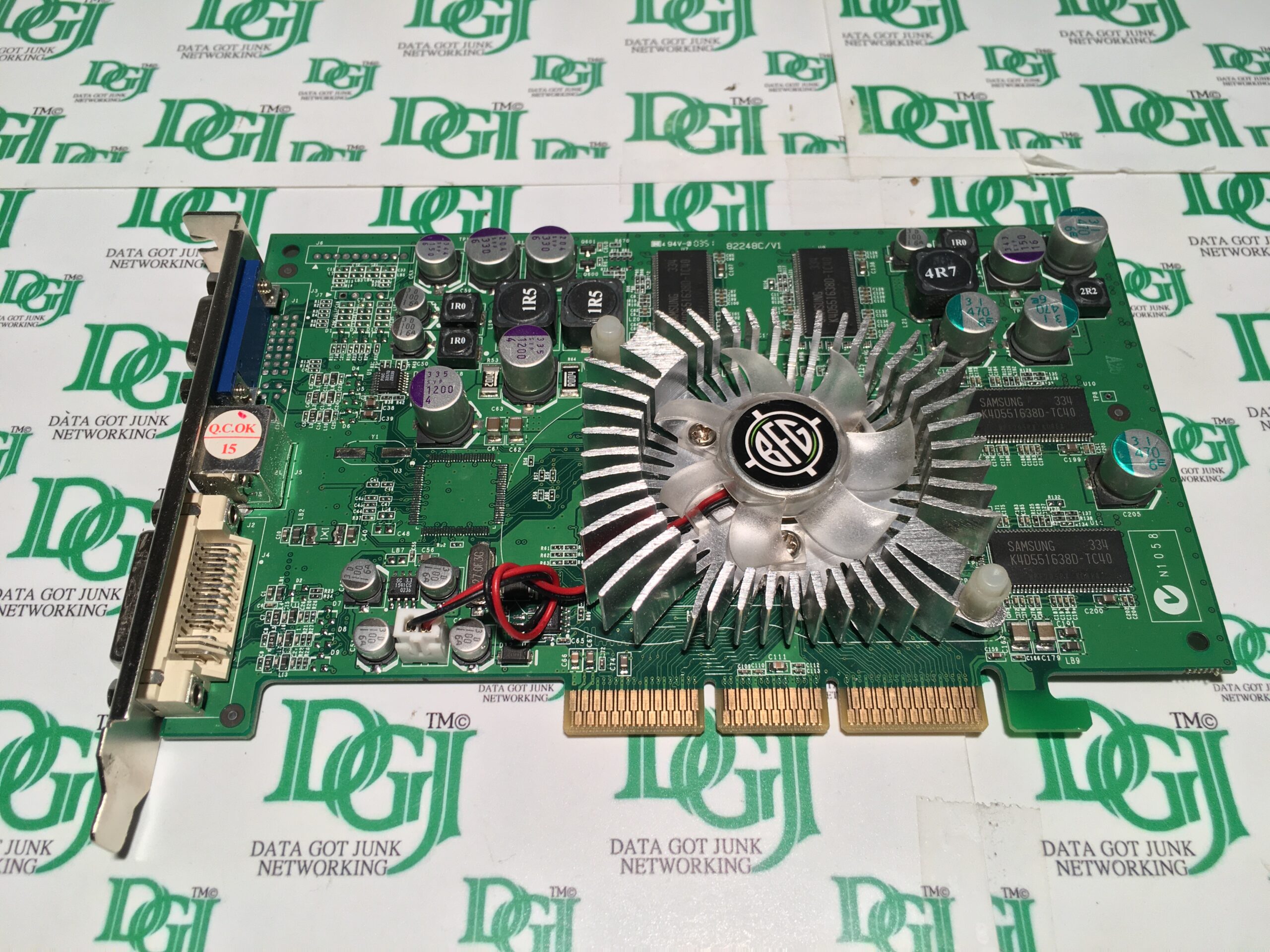

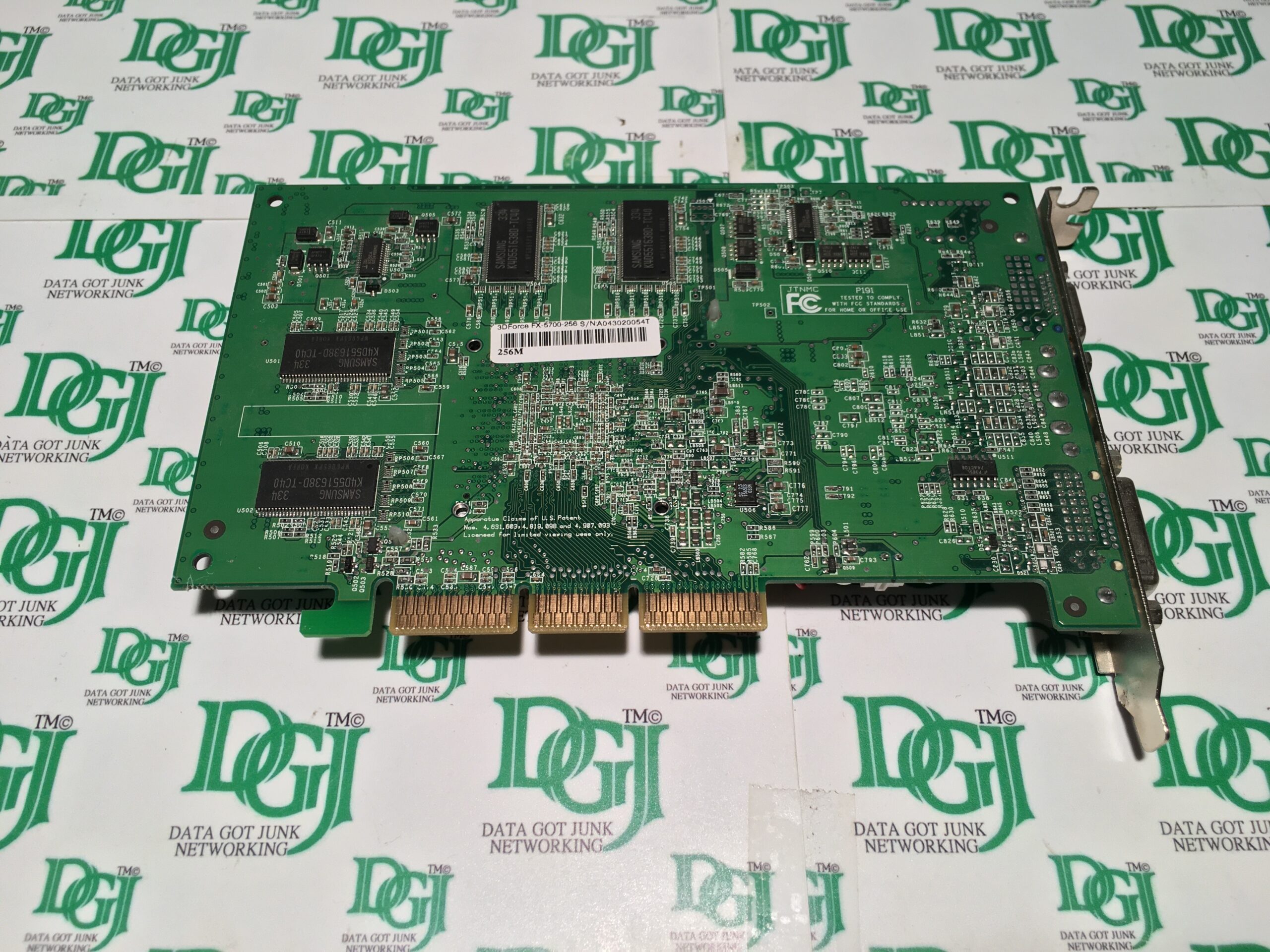

The Jaton 3dForce FX-5700-256 is a vintage mid-range graphics card from 2004 built around the NVIDIA GeForce FX 5700 architecture. Utilizing the AGP 8x/4x interface, this card features 256MB of DDR memory and was designed during an era when extra video memory was heavily marketed for handling higher texture resolutions.
Today, this specific model is highly regarded as a piece of legacy hardware tailored for retro gaming PC builds, particularly for systems running Windows 98 SE or Windows XP.
Key Specifications & Architecture
-
- Graphics Processor: NVIDIA NV36 GPU (built on a 130 nm manufacturing process)
- Core Clock Speed: 425 MHz

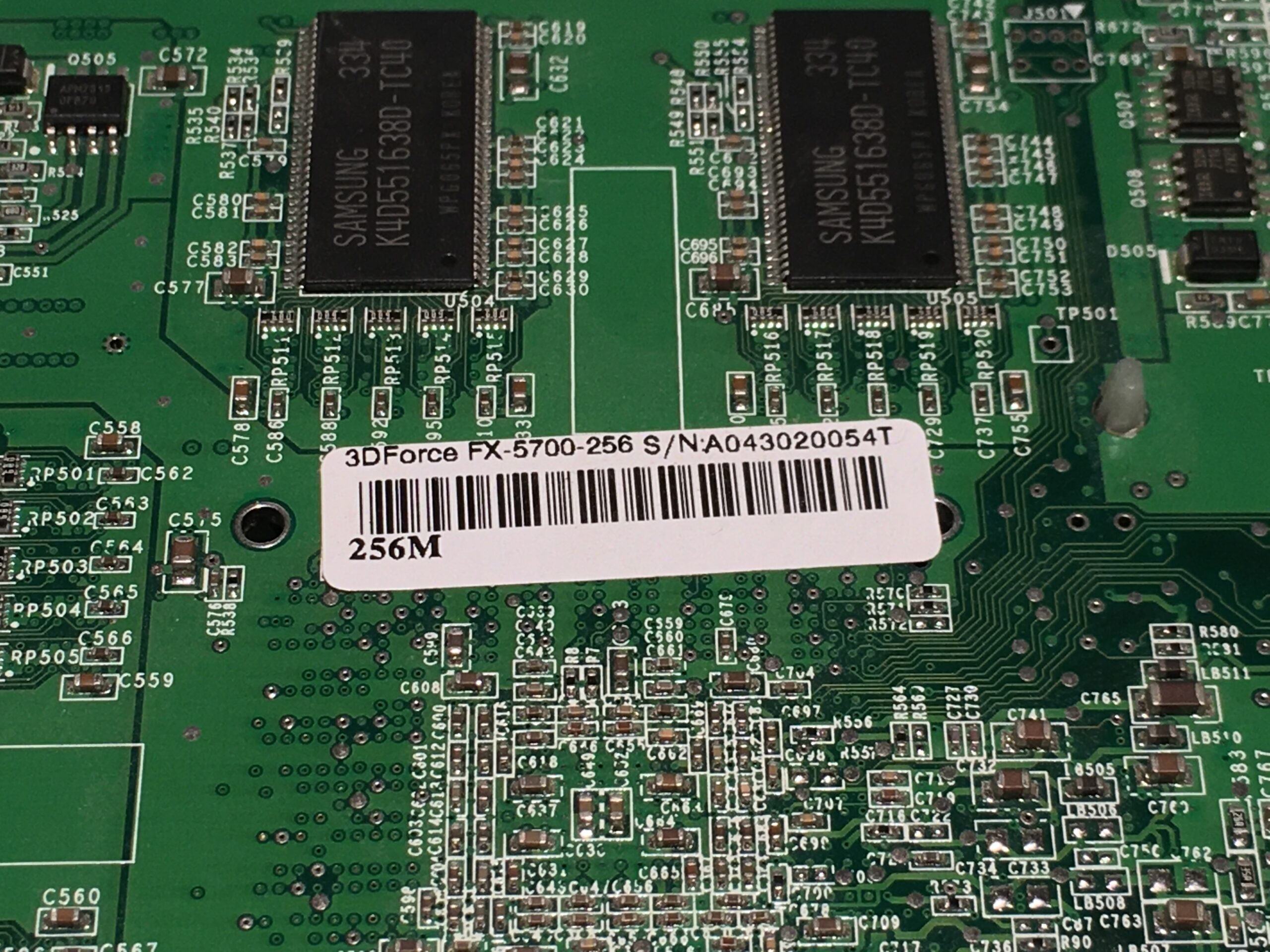

- Memory Configuration: 256 MB of DDR SDRAM
- Bus Type: AGP 8X / 4X backward compatible (operating at 1.5V / 0.8V signaling)
- API Support: Native hardware support for DirectX 9.0a and OpenGL 1.5

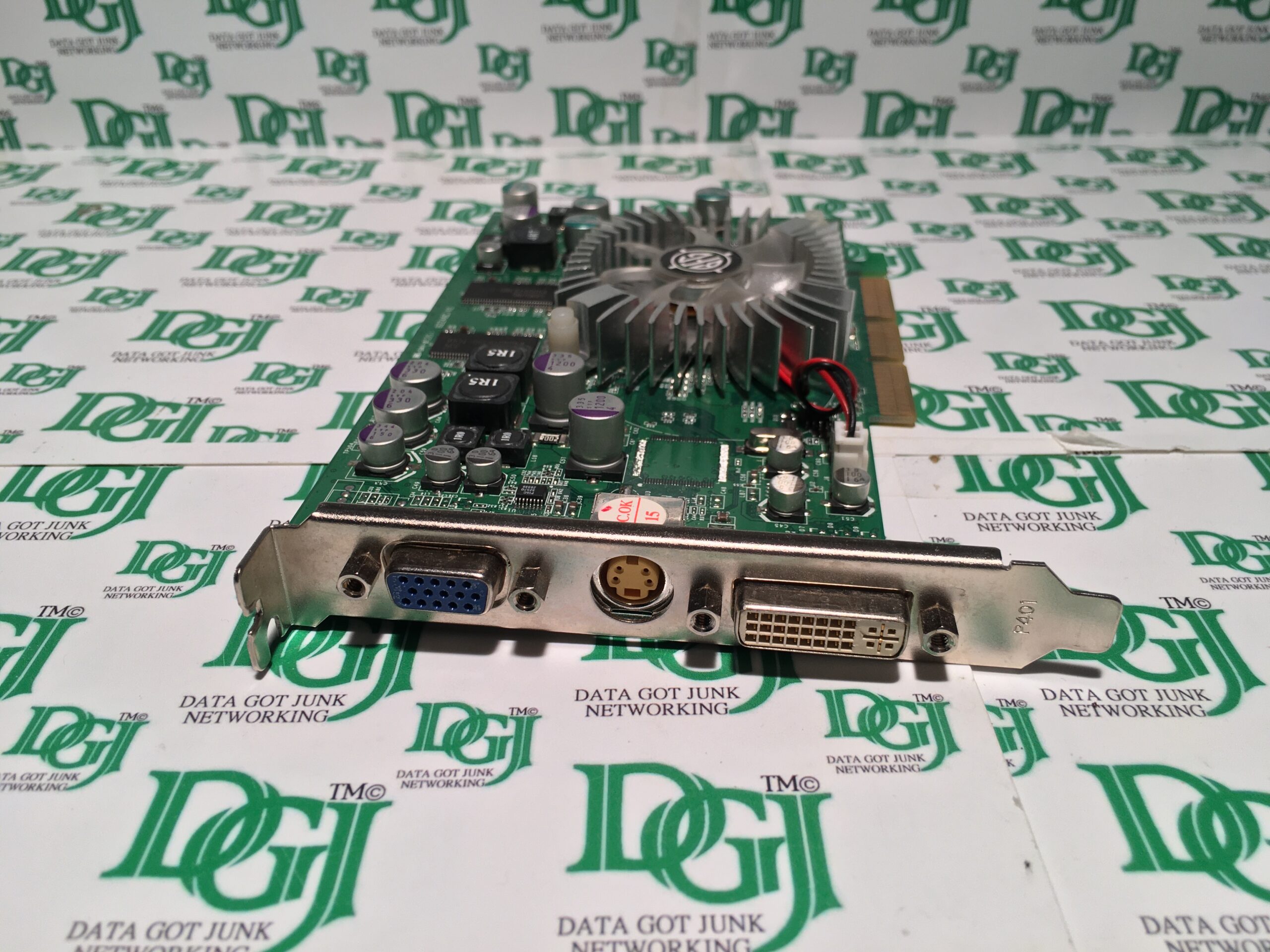

- Physical Connectivity: Standard video outputs include 1x VGA (D-Sub), 1x DVI-I, and 1x S-Video for TV-out.
Performance & Modern Use Case
While the GeForce FX series initially faced criticism in 2003 for its poor execution of complex pixel shaders in early DirectX 9 games (like Half-Life 2), it has experienced a massive resurgence in popularity among retro hardware enthusiasts.
- Windows 98 Compatibility: Unlike newer PCIe graphics cards, the FX 5700 has excellent, stable official drivers for Windows 98 and Windows ME.
- Legacy Feature Support: The card natively supports 8-bit paletted textures and table fog. These features are mandatory for rendering 1990s PC games properly (such as Final Fantasy VII or Thief) but were dropped by later GPU generations.
- Overkill VRAM: For games released between 1998 and 2002, 256MB of VRAM is massive, allowing you to crank up resolutions and anti-aliasing without hitting memory bottlenecks.
